Medical Compressor Nebulizer

1. The Medical Compressor Nebulizer has a built-in high-efficiency oil-free piston compressor. No cooling water is required for atomization, daily maintenance is free, and the operation is simpler and more convenient.
2. The original drug is atomized, no dilution is required, and the clinical effect is good.
3. There is almost no drug residue, and the drug utilization rate is high.
4. It is more convenient to operate and use. The product is equipped with a 1-meter trachea, which has a large room for movement and can be used while sitting or lying. The atomization component is light and easy to wear and hold.
5. The atomization uses the original drug for atomization. The amount of atomization inhaled during the relative treatment time is appropriate, and it is not easy to cause the tracheal inner wall mucosa to swell and cause tracheal obstruction.
6. Purely mechanical products, with extremely low failure rate, low maintenance cost and long service life.

Atomization method

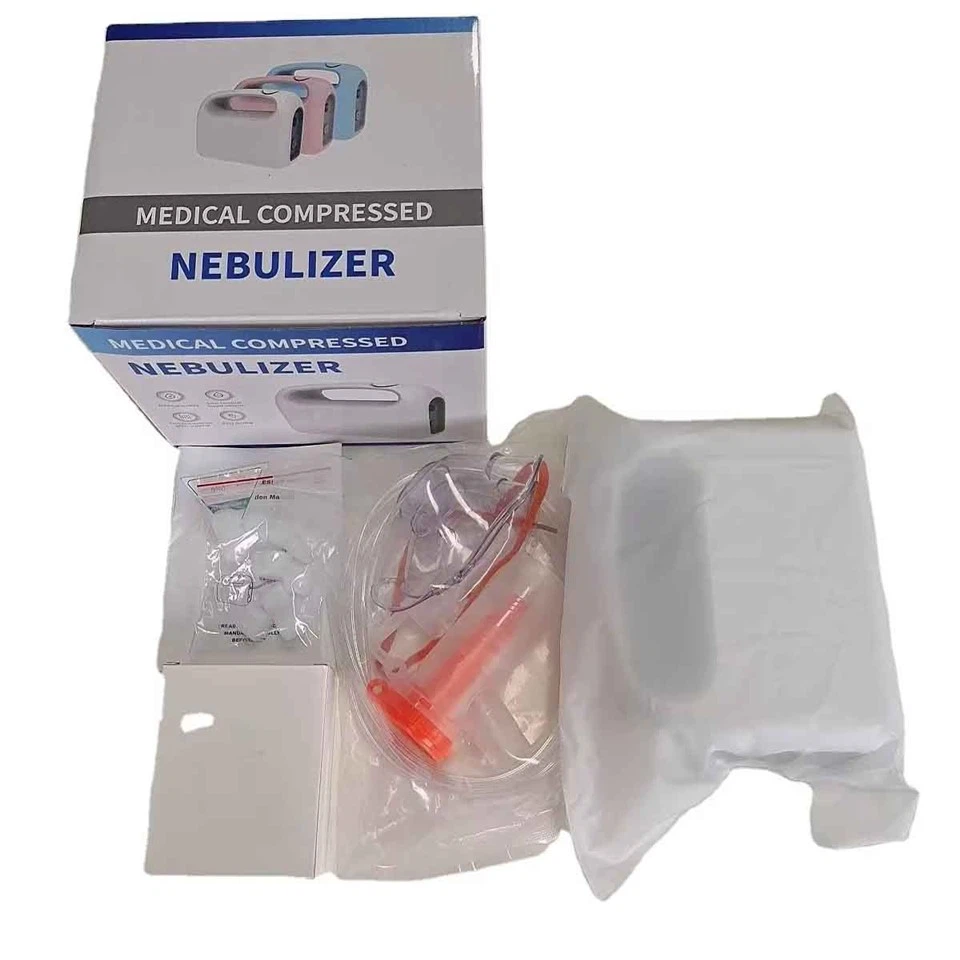

Generally, infants and young children use masks, while adults can use masks or mouthpieces. The Medical Compressor Nebulizer usually comes with a child mask + an adult mask + an adult mouthpiece. If you need an additional mask or mouthpiece, you can buy it separately.

Noise
Generally, the noise decibel of a household desktop compression atomizer is less than or equal to 65dB, and the handheld one is quieter, about less than or equal to 45dB. What is the concept of 65 decibels? It is about the sound of a car engine running, because under normal circumstances, the atomization time is 15-20 minutes, and this decibel is acceptable.

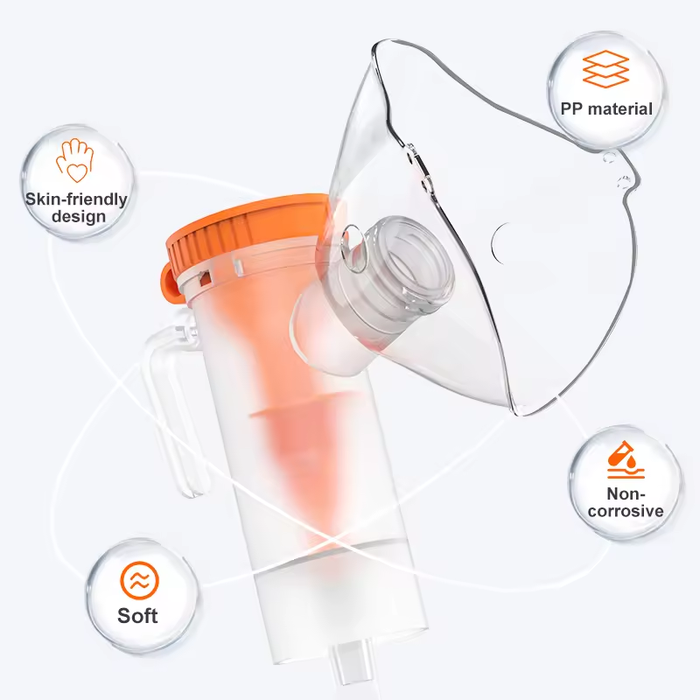

The medical compression nebulizer is mainly composed of a main unit, an air supply pipe, an atomizing device, a nozzle or an inhalation mask, wherein the main unit is mainly composed of a compression pump, a filter assembly and a control system. The medical compression nebulizer uses the principle of the Venturi effect. Generally, it uses the compressed gas generated by a gas compressor as the driving source to generate and transmit aerosol. The schematic diagram of its working principle is shown in the figure below. When the compressed air generated by the compressor is ejected from the nozzle, the negative pressure generated between the nozzle and the suction pipe sucks the liquid medicine upward. The sucked-up liquid medicine hits the diaphragm above and becomes an extremely fine mist that is ejected to the outside.

Nebulizer particles
The hospital nebulizer uses a compressed nebulizer with a nebulizer particle size of 2-5μm, which is suitable for all people (adults/elderly/children) and major respiratory diseases. The nebulizer does not mean the larger the mist, the better. The final effect depends on:

The drug used (follow the doctor's advice);
The size of the nebulizer particles determines the part of the body that is affected.
The frequency of inhalation/exhalation;
The amount of drug waste. When exhaling, part of the mist will be blown out of the cup, which means that the amount of medication is insufficient.
