6 in 1 Blood Analyzer Machine

After getting the blood lipid report, we need to pay attention to the following four indicators [1] - triglycerides (TG), total cholesterol (TC), low-density lipoprotein cholesterol (LDL-C) and high-density lipoprotein cholesterol (HDL-C). The following is the normal range of these four indicators:

Triglycerides (TG): 0~1.7mmol/L

Total cholesterol (TC): 0~5.2mmol/L

Low-density lipoprotein cholesterol (LDL-C): <3.4mmol/L

High-density lipoprotein cholesterol (HDL-C): >1.04mmol/L

Blood sugar health indicators: Normal fasting blood sugar values ​​are 3.9~6.1mmol/L. If it is beyond this range, whether it is high or low, there will be problems.

Blood pressure health indicators: Normal blood pressure includes systolic blood pressure (SBP) <120mmHg and diastolic blood pressure (DBP) <80mmHg, both of which need to be met.

Uric acid health indicators: If hyperuricemia is to be diagnosed under a normal purine diet, the fasting blood uric acid level needs to be measured twice on different days, which is >420μmol/L for men and >360μmol/L for women.

Measurement Range of the 6 in 1 Blood Analyzer Machine:
TC:2.59-12.93 mmol/L (100-500 mg/dL,1mmol/L=38.66mg/dL)
HDL:0.39-2.59 mmol/L(15-100mgidL,1mmol/L=38.66mg/dL)
TG:0.51-7.34mmol/L(45-650 mg/dL, 1mmol/L=38.66mg7dL)
Glu: 20~600mg/dL(1.1-33.3mmol/L)
UA: 3~20mg/ dL(179-1190umol/L)
Blood Pressure:0-300 mmHg (Pressure); 30-180 beats/min(Pulse)
Sample: Fresh capillary whole blood
Specimen volume of Lipid: approx. 35μl
Specimen volume of Glucose: approx. 1μl
Specimen volume of Uric Acid: approx. 3μl

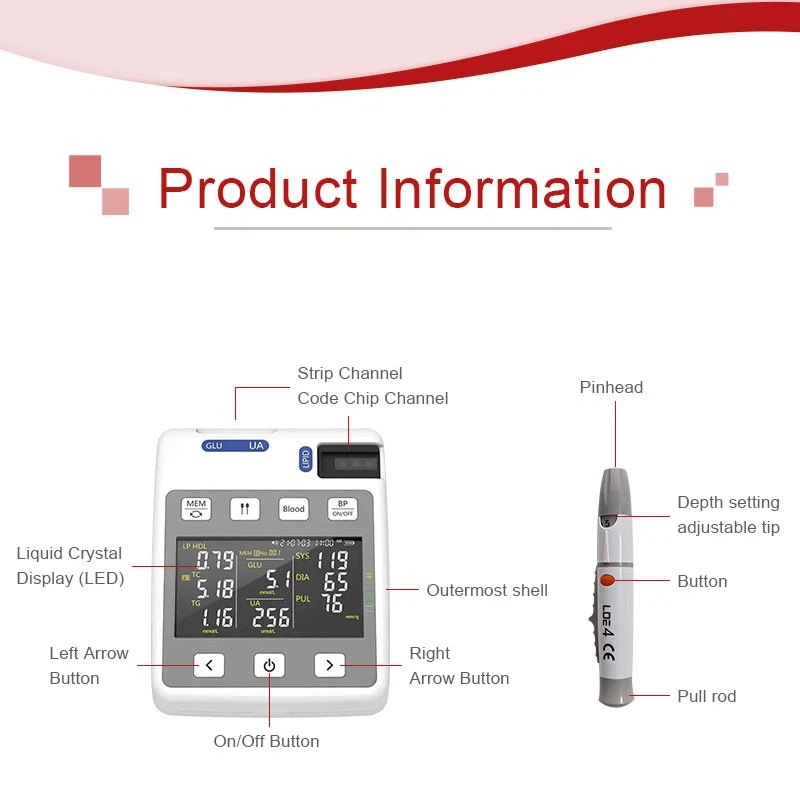

The 6 in 1 blood analyzer machine has the LCD screen.

The LCD screen is composed of multiple pixels, each of which contains sub-pixels of red, green, and blue. By controlling the brightness of each sub-pixel, various colors can be mixed. Liquid crystal molecules change their arrangement under the action of voltage, thereby controlling the transmittance of light. Specifically, when the liquid crystal molecules are arranged in an orderly manner, light can pass through; when the arrangement is chaotic, the light is blocked.

Hematology analyzer is essentially an instrument that analyzes the number and heterogeneity of blood cells in a certain volume. The original blood cell counter (Cell Counter) could only count red blood cells (RED) and white blood cells (WBC), and later there were several parameters such as hemoglobin (HBG), platelets (PLT), hematocrit (HCT), mean corpuscular volume (MCV). After it developed into a hematology analyzer (Hematology Analyzer), many analysis and calculation parameters were added, such as red blood cell volume distribution width (RDW), mean platelet volume (MPV), platelet volume distribution width (PDW), platelet volume distribution width (PCT), large platelet ratio, three groups of white blood cells, five types of white blood cells, hemoglobin concentration distribution width, abnormal lymphocyte prompts, immature cell prompts, and other parameters and functions are constantly added to some brands of instruments.
